Description
- Empty gas fuel canister, with standard EN417 Lindal valve, max for 35g butane gas.
- Can be filled from a variety of fuel cans. Both of nozzle type butane canister or EN417 Lindal valve canisters are OK. (For EN417 Lindal valve canisters, the separately sold Refill Adapter Z15 is required.)
- 【CNC machining】 A cool and tight design by adding a duralumin silver color with a CNC finish.
- Compatible with standard 1/4" screw thread. A mini tripod can be attached for standing stably even at outdoors with uneven surfaces.
- You can also fill propane gas in this canister. For 16oz small propane tank, the separately sold Propane Adapter Z22 is required.
Feature
CNC machined The texture of cutting with duralumin is a high quality finish. Comes with occlusion cap. Protects screwed parts.
Can be attached to a tripod The bottom of the tank has a "1/4 inch screw hole'' that allows you to attach a "tripod'' for use with cameras, etc.

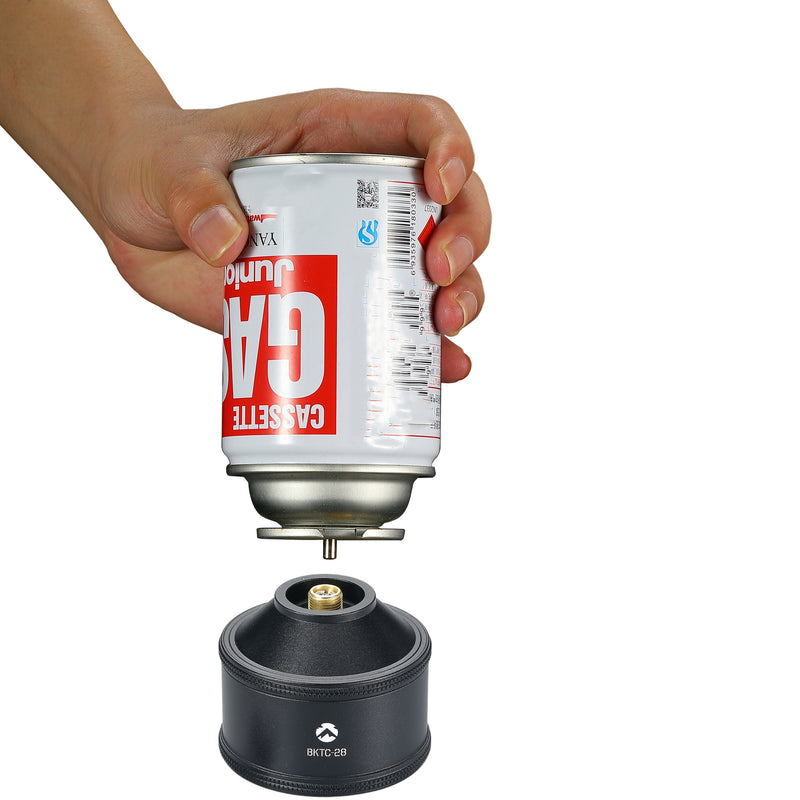

Easy filling When filling from CB cans, insert the nozzle vertically at the tip straight into the valve of the filling tank and fill by pushing from above.

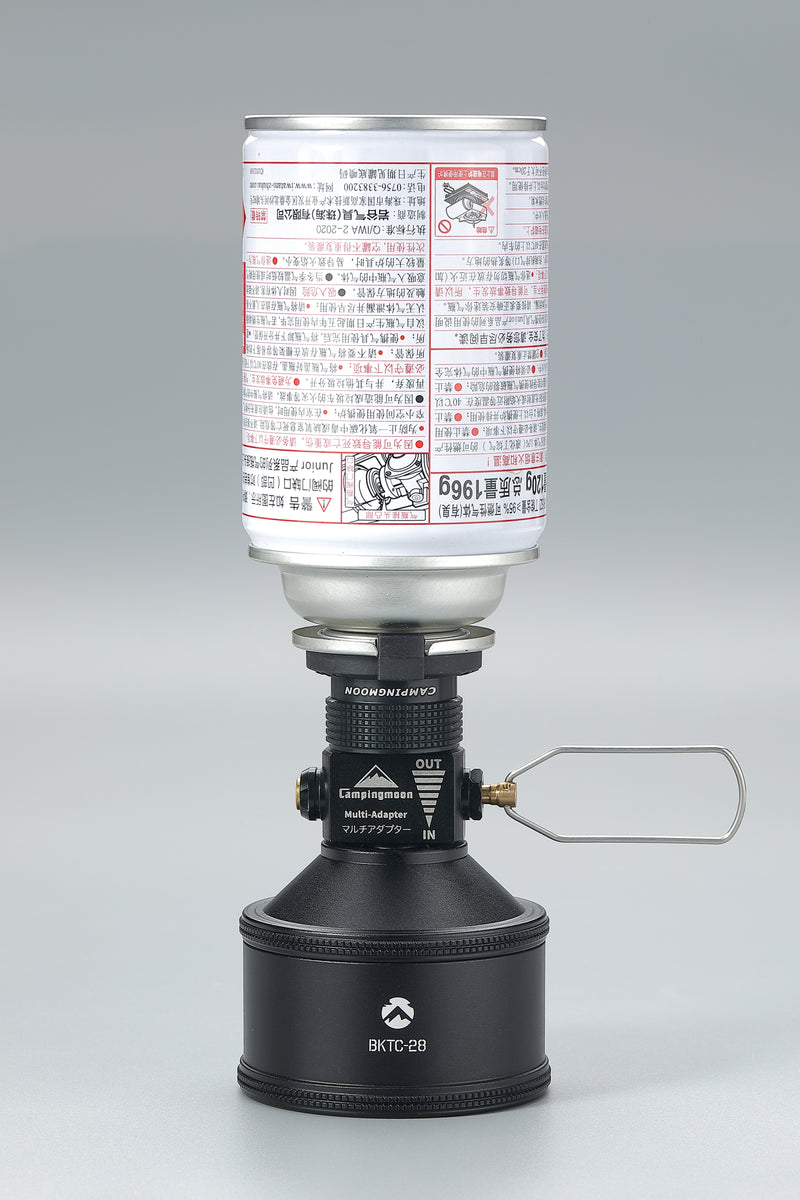

Be filled from Lindal valve Gas refill adapter Z15 (sold separately) is required.
Usage scene
Gallery
Specs
Note:
Turn the container (tank) upside down so that the gas filling valve faces upward, and insert the stem of the CB can straight into it to fill it with gas. *Insert the nozzle of the cylinder vertically into the gas inlet and press firmly. At this time, make sure to accurately align the cylinder nozzle with the tank's gas inlet. *Filling will be completed in approximately 8 to 35 seconds (please avoid filling for more than 35 seconds). *Work outdoors, away from fire, and stand upwind. Don't forget to check that there are no people around. *As you fill the gas, liquid gas will gush out from the gas filling bubble, so use this as a guide to finish filling. (Gas leakage during filling is normal, as is the case with other products, but if you are concerned, we recommend purchasing the dedicated adapter "Multi Adapter Z15" separately.) *Please note that gas containers are, in principle, not allowed to be carried on board aircraft, so carrying them on board, checking them in, or transporting them by airmail will be considered unacceptable.
Cautions
When filling with gas, do not overfill (repeatedly repeating the filling process even if gas blows out from the filling port). Overfilling is not safe as the gas may come out in liquid form and cause abnormal combustion. It may also cause clogging and other malfunctions. If the flame size is unstable (pulsating), it may be overfilled. In that case, turn the appliance stopper knob to OFF, make sure the flame is extinguished, and remove the fillable tank. Push in the pressure reducing valve of Multi Adapter Z15 to release the overfilled gas. The size of the flame is greatly affected by the remaining amount of gas, gas composition, and internal pressure of the container (cylinder). The flame tends to be smaller when there is less gas or when regular gas (butane only gas) is used. When the temperature is low, we recommend using power gas (gas containing propane). When storing or carrying the product, do not hold the squirt part. There is a risk that the squirt may come off. Be sure to hold the main unit when carrying it. Regarding this product, unlike commercially available gas cans, the firepower is somewhat unstable due to a lack of steam pressure inside the tank. When you use it for the first time, the flame will not be stable because there will be some air left in it, but as you use it, the air will come out and it will become more stable.We appreciate your understanding and understanding.
